40PCS CNC Milling & Carving Bit Set, 1/8" Shank

High Quality: The Genmitsu end mills are made of ultra-fine 0.2μm tungsten carbide steel alloy that can withstand continuous machining for 800 minutes. Moreover, its Nano Blue Coating /Titanium Coating, with its high hardness and heat resistance, enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

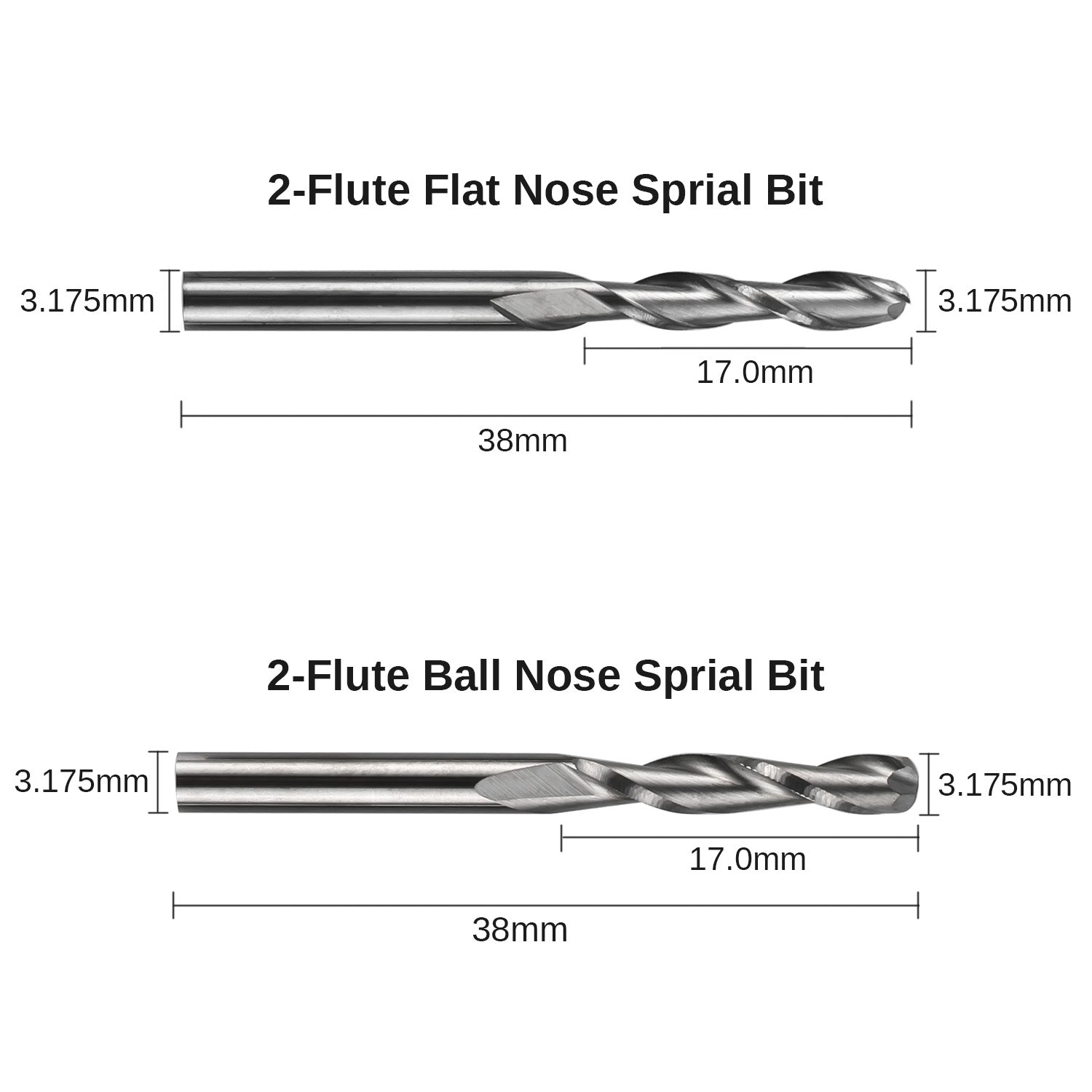

2-Flute Spiral Flat Nose & Ball Nose End Mills: Shank Diameter: 3.175mm, Cutting Diameter: 3.175mm, Cutting Length: 17mm, Overall Length: 38mm.

Two End Mill Sets: Shank Diameter: 3.175mm, Cutting Diameter: 0.8 - 3.0mm (0.8/1.0/1.2/1.4/1.6/1.8/2.0/2.2/2.5/3.0mm), Cutting Length: 17mm, Overall Length: 38mm, with Nano blue and Titanium coating.

Applicable Materials: Widely used in various materials including plastics, aluminum, circuit board, wood, and other precision parts processing.

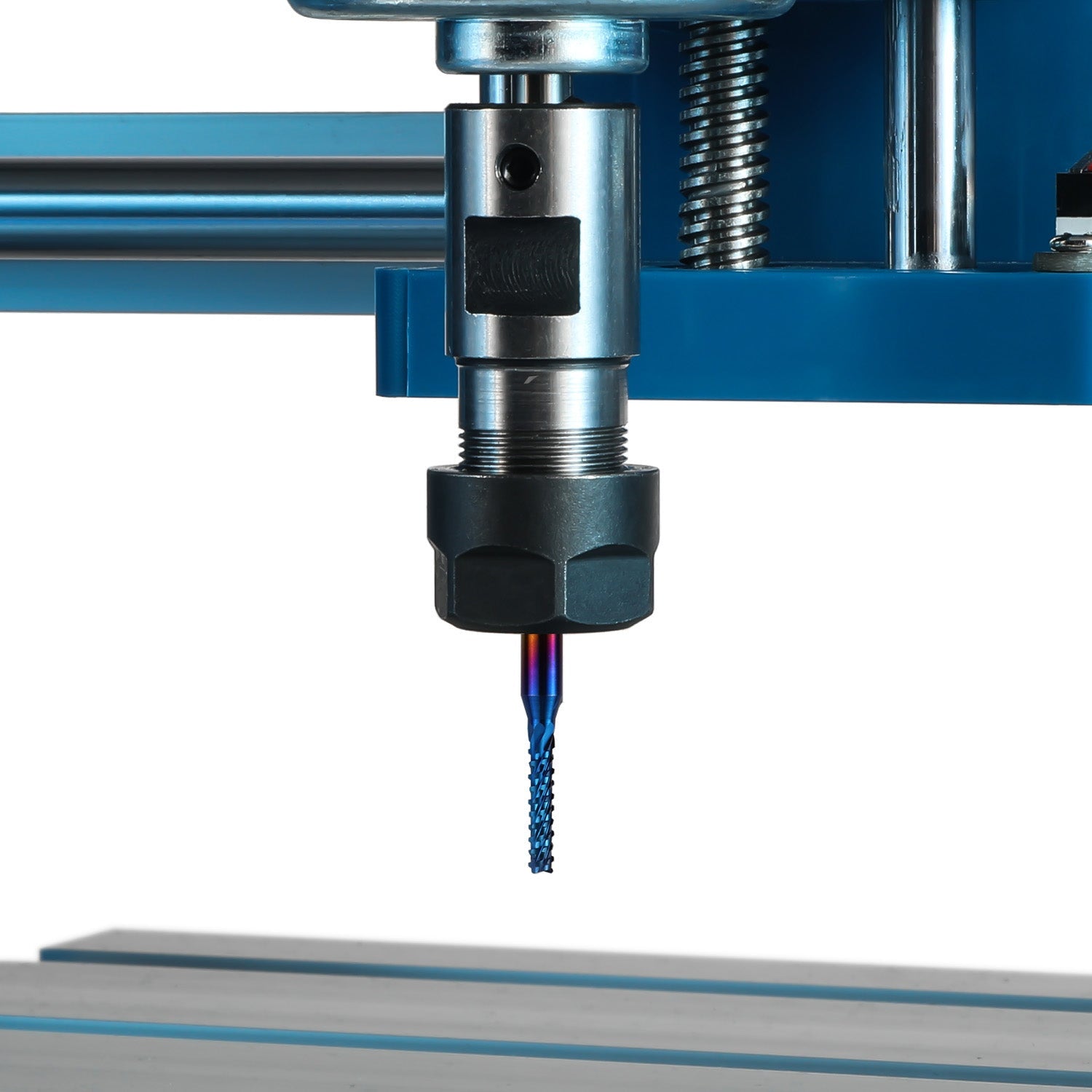

Wide Compatibility: The MC40A end mills are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. Just make sure you select the correct-sized collet for your device.

Cost-Effective Set

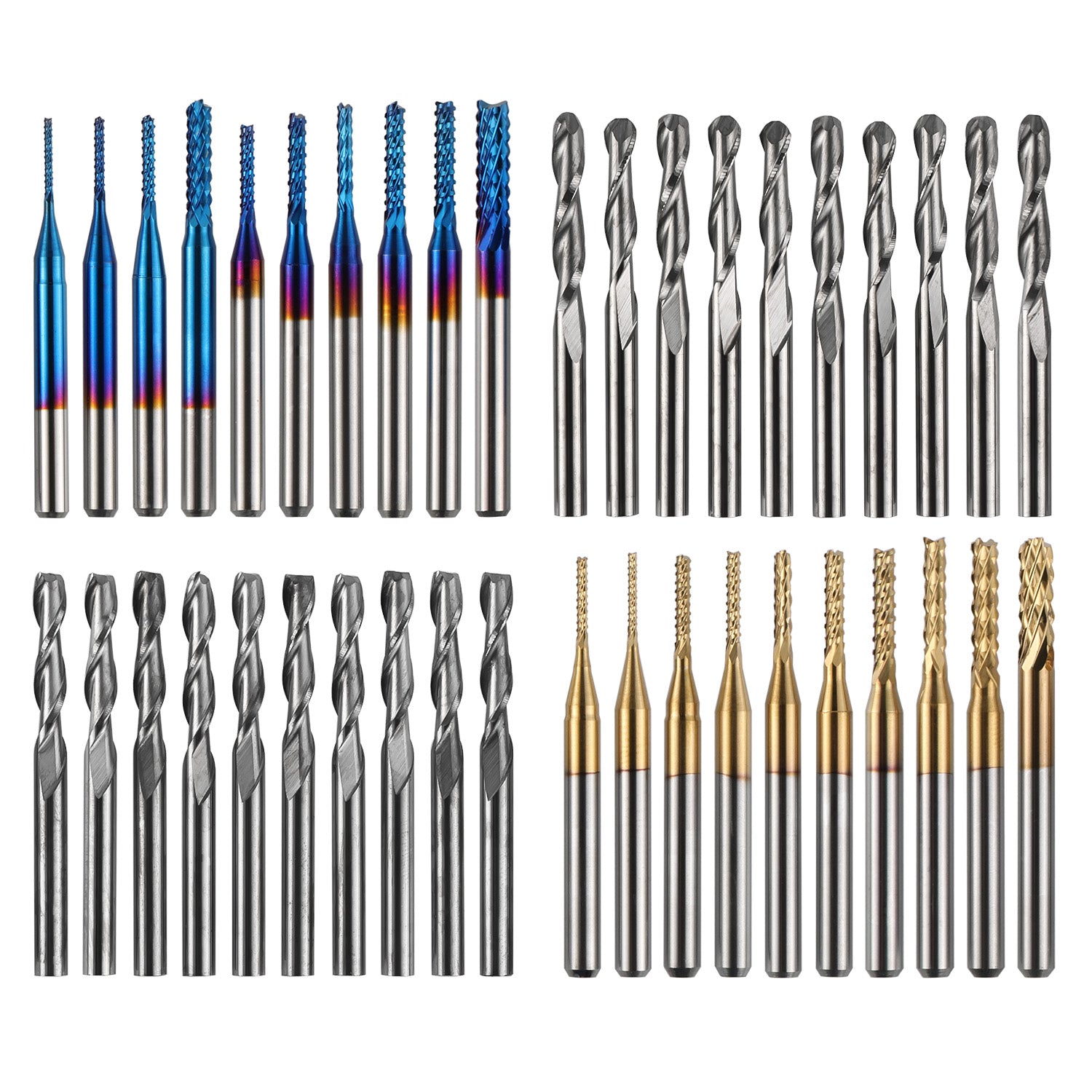

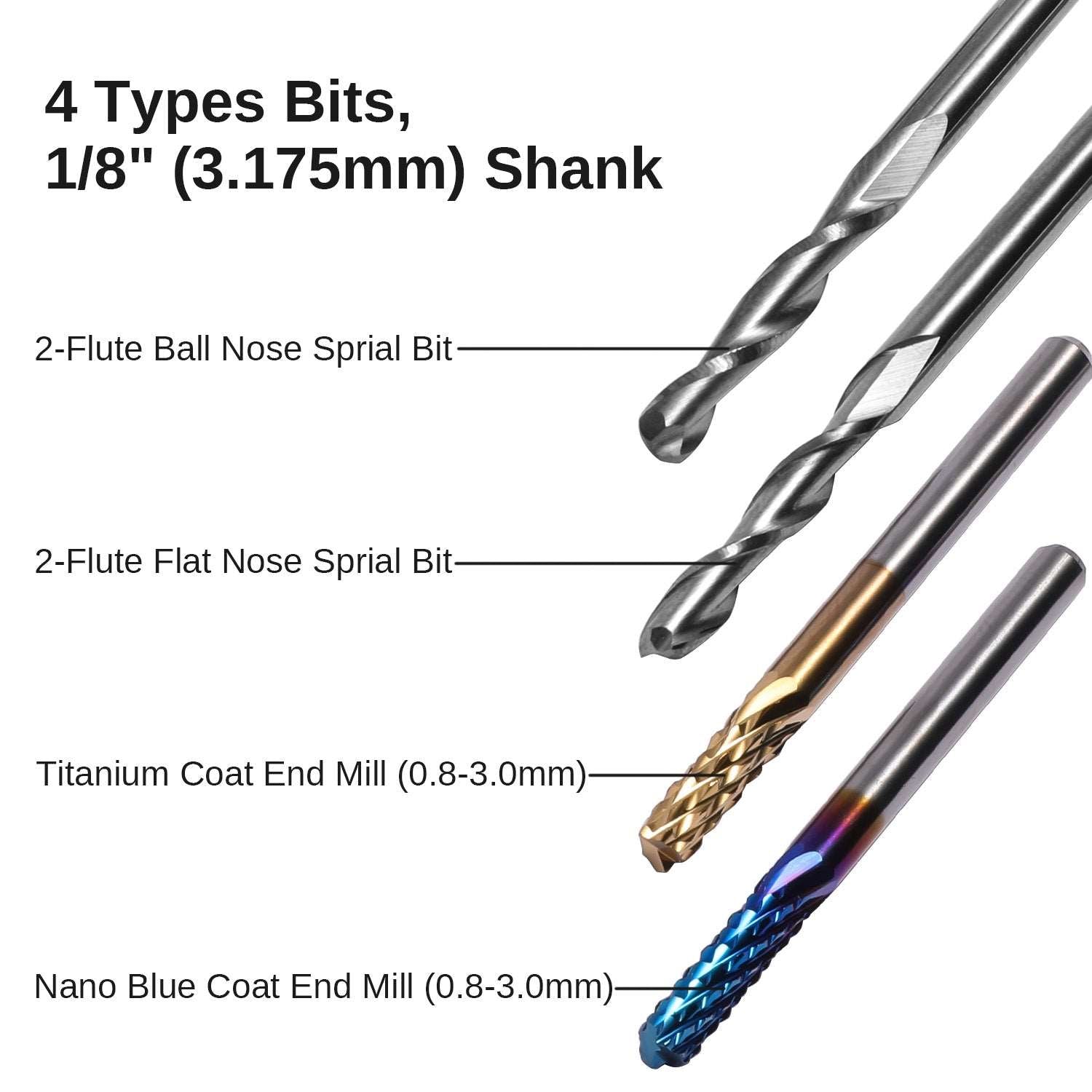

The MC40-U01 end mill set includes 4 type bits: spiral flat nose bits, ball nose bits, Nano Blue Coat end mills and Titanium Coat end mils. It's a very cost-effective set to meet your all needs in engraving work.

Wide Application

Widely used in various materials including plastics, aluminum, circuit board, wood, as well as other precision parts processing. They are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines.

High Quality

It's Nano Blue Coating /Titanium Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

Specifications

• Material: Tungsten Carbide Steel Alloy
• Surface: Nano Blue Coating/Titanium Coating
• Shank Diameter: 1/8'' (3.175mm)
• Cutting Diameter: 0.8-3mm, 3.175mm
• Cutting Length: 17mm
• Overall Length: 38mm

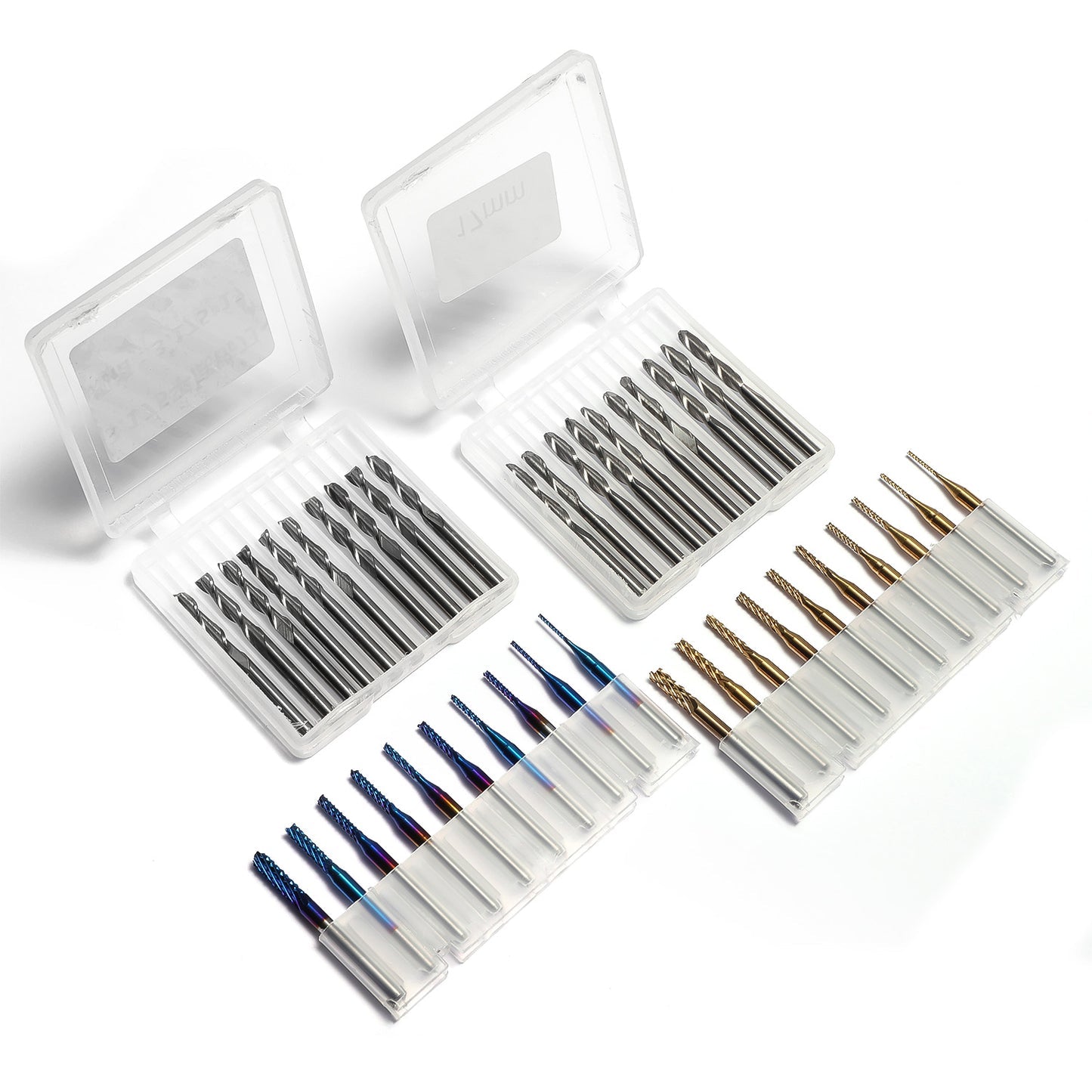

What's in the box

• 10 x Spiral Flat Nose End Mills, 2-Flute
• 10 x Spiral Ball Nose End Mills, 2-Flute

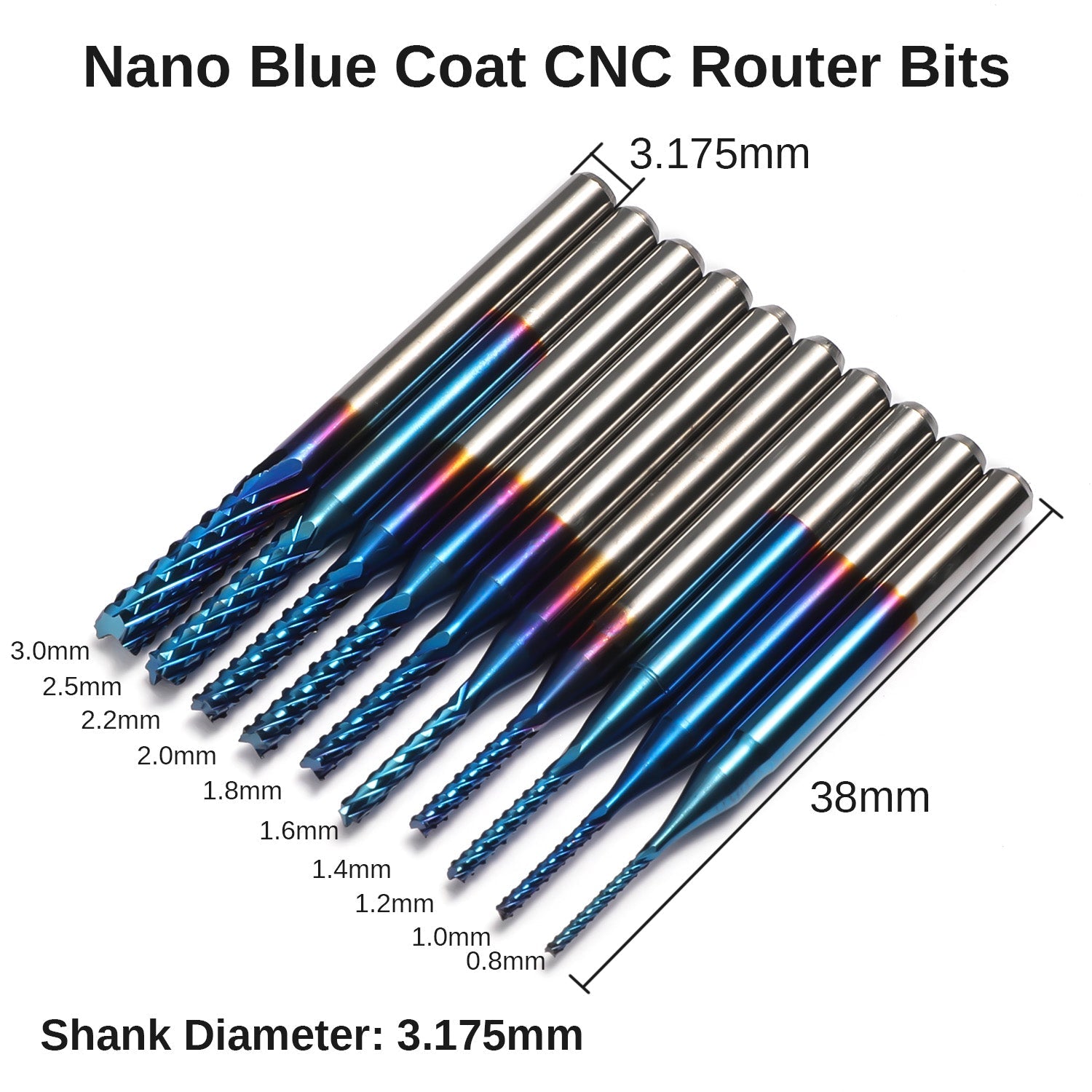

• 10 x Nano Blue Coating End Mills (different cutting diameters: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)

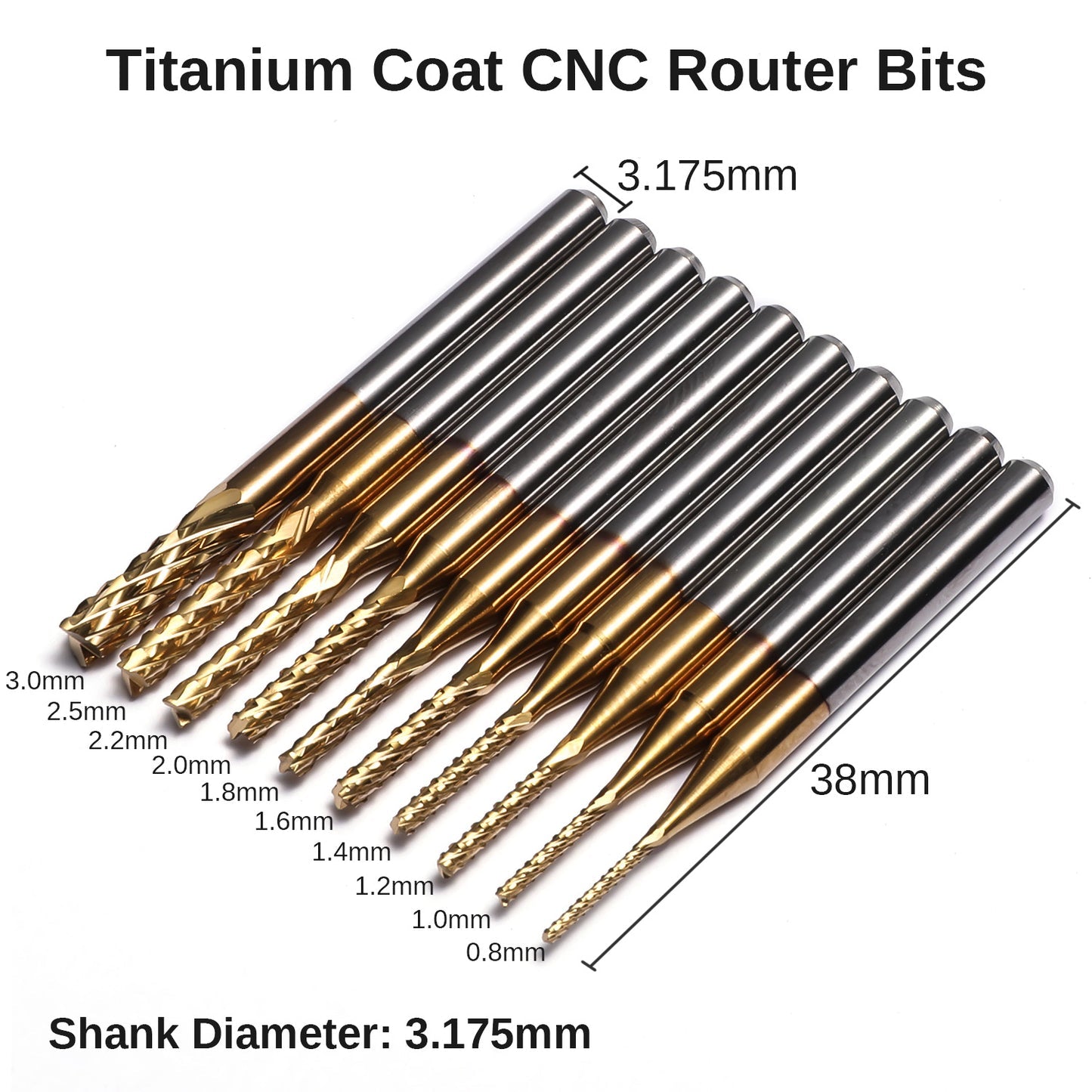

• 10 x Titanium Coating End Mills (different cutting diameters: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)
